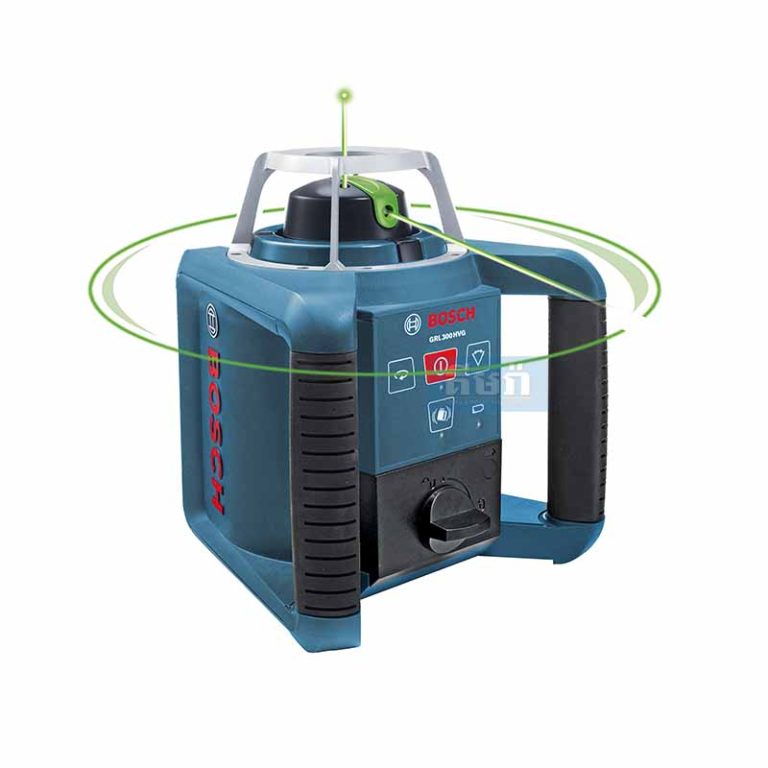

GRL 300 HVG ROTATION LASER
$715.00
Outstanding visibility for indoor applications
- Green laser line: up to four times better visibility than a red line
- Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
- The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks or vibrations
Description
Additional data |
|
|---|---|
| Working range with receiver, value | 300 m |
| Dust and splash protection | IP 54 |
| Working range, value | 100 m |
| Laser diode | 532 nm, < 5 mW |
| Operating temperature | 0 – 40 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 3R |
| Working range | 100 m |
| Working range with receiver | 300 m (Diameter) |
| Working range without receiver | 100 m (Diameter) |
| Accuracy | ± 3.0 mm at 30 m* (*plus use-dependent deviation) |
| Self-levelling range | ± 5° (8%) |
| Levelling time | 15 s |
| Rotation speed | 150, 300, 600 rpm |
| Power supply | 2 x 1.5 V LR20 (D) |
| Tripod thread | 5/8″ |
| Weight, approx. | 1.8 kg |
| Colour of laser line | green |
| Compatible laser receivers | LR 1G |
| Slope function | no |
